Analab CleanAcids

Sub-boiling Purification Systems

Designed to safely generate ultra-pure reagents required for trace metal analysis from inexpensive reagent-grade starting materials.

Clean Acids. Lower Cost. Better Results.

Produce high-purity acid when it is needed - from lower cost reagent grade acid
The inexpensive reagent-grade acid is gently heated and the condensed vapors produce high-purity acid in an external collection bottle
Units available with 1, 3, 6, & 12 purification stations; equipped with volumes of 125, 500, & 1000 mL
All CleanAcid component surfaces are PFA coated to eliminate corrosion by acid vapors, for long. maintenance-free lifetime
Temperature Regulator located remote from device with a PFA encapsulated cable to allow placement outside hood environment

CleanAcids 3 x 500 mL

Jump To Products

CleanAcids Models

Save your lab money and time with Analab’s acid purification systems!

CleanAcids 3 x 125 mL

CleanAcids 12 x 125 mL

CleanAcids 3 x 500 mL

CleanAcids 1 x 1000 mL

How It Works

The inexpensive reagent-grade acid is placed inside a PFA bottle and held by the CleanAcids system to a constant, uniform and controlled temperature (just below the acid boiling point)
Sub-boiling distillation produces high-purity acid vapors which then condense into the collection vessel
Purification for HCl, HNO₃, HBr, HF, HClO₄, NH₄OH & H₂0₂

CleanAcids Accessories

Vessel Kits available in 125, 500, & 1000 mL sizes
All Fluoropolymer construction for corrosion resistance and high purity
Each Vessel Kit consists of 2 PFA vessels, 2 PFA caps, and fluoropolymer elbow with vent
Elbow Stands available for all vessel sizes, for support of Vessel kits while not in use

500 mL Vessel Kit

Elbow Stand & Vessel Kit

Temperature Controlled Regulators

All Analab devices require an external temperature regulator/controller
Designed for remote location outside the corrosive atmosphere of the fume hood for extended operational lifetime
Available in 110–120 V & 208-240 V models
Single controller models available in:
- Single-setpoint Nonprogrammable Regulator with Timer
- Multistep Programmable Regulator
Dual controllers available with temperature feedback/control from remote probe

Nonprogrammable Regulator with Timer

Programmable Regulator with Timer

Programmable Dual Controller Regulator

Product Flyers

CleanAcids Flyer
Analab Regulators Flyer

CleanAcids 3 x 125 mL

Part No.: CA-3.125-2V-20A

Three positions for 125mL vessels to capture the purified reagent.

CleanAcids 6 x 125 mL

Part No.: CA-6.125-2V-20A

Six positions for 125mL vessels to capture the purified reagent.

CleanAcids 3 x 500 mL

Part No.: CA-3.500-2V-20A

Three positions for 500mL vessels to capture the purified reagent. 250°C max.

CleanAcids 1 x 1000 mL

Part No.: CA-1.1000-1V-15A

One position for 1000mL vessel to capture the purified reagent.

Vessel Kit - 125 mL

Part No.: KIT-VESSEL-125mL-WV

Vessel kit for 125 mL devices

Vessel Kit - 500 mL

Part No.: KIT-VESSEL-500mL-WV

Vessel kit for 500 mL devices

Vessel Kit - 1000 mL

Part No.: KIT-VESSEL-1L-WV

Vessel kit for 1000 mL (1 L) devices

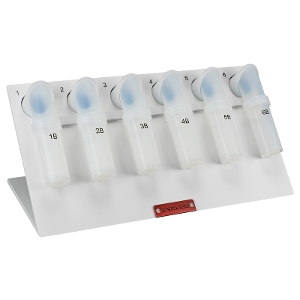

Stand for Elbows - 6 X 125 mL

Part No.: ELBOW-STAND-6x125mL

Six position stand to hold 125mL vessels in any stage of the process.

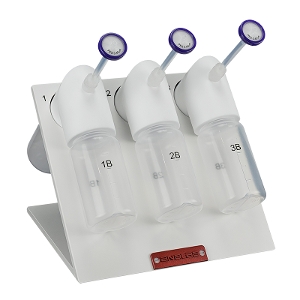

Stand for Elbows - 3 X 500 mL

Part No.: ELBOW-STAND-3x500mL

Three position stand to hold 500mL vessels in any stage of the process.

Cleaning Kit - 125 mL

Part No.: EV-CleaningKit-125mL

The Cleaning Kit allows you to clean and decontaminate the vessel(s) used with your EvapoClean. Kit includes Three CleanClever No. 6 sleeves and three PFA 90mL jars.

Cleaning Kit - 500 mL

Part No.: EV-CleaningKit-500mL

The Cleaning Kit allows you to clean and decontaminate the vessel(s) used with your EvapoClean. Kit includes Three CleanClever No. 25 sleeves and three PFA 90mL jars.
