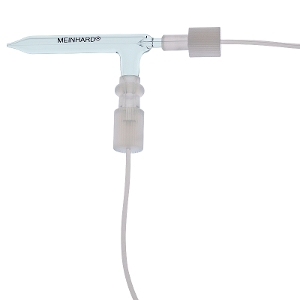

MEINHARD Classic Type A Nebulizers
High Performance, Low Sample Consumption
Designed to produce a minimum mean droplet size, and maximum analytical sensitivity. Select this when pressing for the lowest detection limits and the smallest sample consumption. Available in borosilicate glass and quartz.
- Glass nebulizers - most commonly used in ICP, and for many routine sample types in ICPMS
- Quartz nebulizers - often preferred in ICPMS to reduce the potential for sample contamination from the nebulizer, lower background levels for Boron.
High Sensitivity (Type A)
Application: General purpose
Calibration reference: 1.0 L/min Ar
End surfaces: lapped
Capillary tip recess, mm: 0.0
Uptake suction: +
Stability of aerosol delivery: +
Plus Series High Sensitivity Quartz Nebulizer
Part No.: TQP-50-A0.5
Includes PFA Quick Connects and sample uptake line.
$425.00
Plus Series High Sensitivity Glass Nebulizer
Part No.: TRP-50-A0.5
Includes PFA Quick Connects and sample uptake line.
$390.00
High Sensitivity Quartz Nebulizer
Part No.: Type A Quartz
Includes: Fit Kit (F5-50), Gas Line (GL-14) and Quick Connect (FG).Select your operating pressure and flow rate from the options below.
$390.00
High Sensitivity Glass Nebulizer
Part No.: Type A Glass
Includes: Fit Kit (F5-50), Gas Line (GL-14) and Quick Connect (FG).Select your operating pressure and flow rate from the options below.
$280.00
