Analab EvapoClean

Evaporate, Concentrate, Purify

Designed to safely evaporate, concentrate, and purify both acids and organic solutions in a closed environment.

Better Sample Preparation = Better Results

  • Closed environment sample evaporation device
  • Samples protected from all sources of contamination during evaporation process
  • Constant and uniform heating ensures safe, controlled evaporation
  • Available in 25 & 125 mL vessel capacities
  • Additional wells on top of the unit also support digestion & vessel cleaning

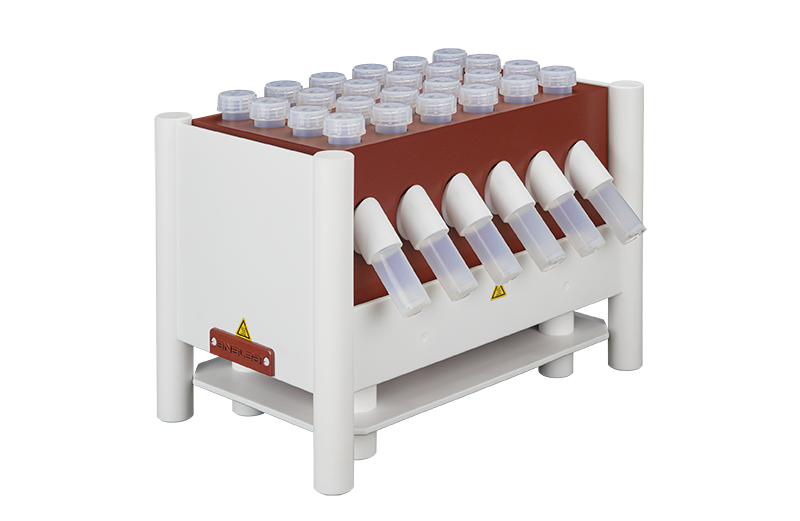

12 Position 25 mL EvpoClean
12 Position 25 mL EvpoClean

EvapoClean Models

Detection of traces and ultra-traces made easier!

12 Position 125 mL EvapoClean
12 Position 125 mL EvapoClean
12 Position 25 mL EvapoClean
12 Position 25 mL EvapoClean

How It Works

  • Evaporation of a solvent to be removed is held at a constant, uniform & controlled temperature, slightly below the boiling point of the solvent
  • Solvent vapors are generated and condense into the room temperature PFA collection bottle
  • Process is performed in a closed environment, eliminating external sources of contamination
  • Heating wells on top of device can be used for digestion or vessel cleaning with CleanClever accessory
How It Works

EvapoClean Accessories

  • Vessel Kits available in 25, 125, & 500 mL sizes
  • All Fluoropolymer construction for corrosion resistance and high purity
  • Each Vessel Kit consists of 2 PFA vessels, 2 PFA caps, and fluoropolymer elbow with vent
  • Elbow Stands available for all vessel sizes, for support of Vessel kits while not in use
EvapoClean 25 mL Vessell Kit
EvapoClean 25 mL Vessell Kit
Elbow Stand & Vessel Kit
Elbow Stand & Vessel Kit

Temperature Controlled Regulators

  • All Analab devices require an external temperature regulator/controller
  • Designed for remote location outside the corrosive atmosphere of the fume hood for extended operational lifetime
  • Available in 110–120 V & 208-240 V models
  • Single controller models available in:
    • Single-setpoint Nonprogrammable Regulator with Timer
    • Multistep Programmable Regulator
  • Dual controllers available with temperature feedback/control from remote probe
Nonprogrammable Regulator with Timer
Nonprogrammable Regulator with Timer
Programmable Regulator with Timer
Programmable Regulator with Timer
Programmable Dual Controller Regulator
Programmable Dual Controller Regulator


EvapoClean 3 x 25 mL

Part No.: EV-3.25mL

Three side positions for 25mL vessels. Maximum temperature 250°C.
Required: 110V temperature regulator, and vessel kit sold separately.


EvapoClean 6 x 25ml

Part No.: EV-6.25mL

Six side positions for 25mL vessels. Maximum temperature 200°C (with a 230V regulator) or max 150°C (with a 110V regulator).
Regulator and vessel kit sold separately.


EvapoClean 12 x 25ml

Part No.: EV-12.25mL

Twelve side positions for 25mL vessels. Maximum temperature 250°C.
Required: 110V temperature regulator sold separately.


EvapoClean 3 x 125ml

Part No.: EV-3.125mL

Three side positions for 125mL vessels. Maximum temperature 250°C.
Required: 110V temperature regulator and vessel kit sold separately.


EvapoClean 6 x 125ml

Part No.: EV-6.125mL

Six side positions for 125mL vessels. Maximum temperature 250°C (with a 230V regulator) or max 150°C (with a 110V regulator).
Regulators and vessel kit sold separately.


EvapoClean 12 x 125ml

Part No.: EV-12.125mL

Twelve side positions for 125mL vessels. Maximum temperature 180°C with a 230V regulator only.
Regulator and vessel kit sold separately.

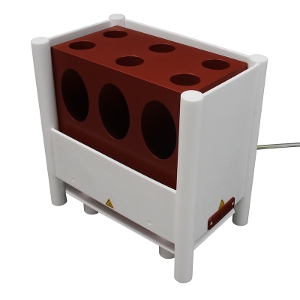

EvapoClean 3 x 500mL

Part No.: EV-3.500mL

Three side positions for 500mL vessels. Maximum temperature 250°C.
Required: 230V temperature regulator and vessel kit sold separately.


Vessel Kit - 25 ML

Part No.: Kit-Vessel-25ML

One kit includes the highest quality PTFE elbow (Qty 1) 25 mL PFA vials (qty 2) PFA closures (Qty 2) and laser marking.


Vessel Kit - 125ML - WV

Part No.: Kit-Vessel-125ML

One kit includes the highest quality PTFE elbow (Qty 1) 125 mL PFA vials with vent (qty 2) PFA closures (Qty 2) and laser marking.


Vessel Kit - 500 ML - WV

Part No.: Kit-Vessel-500ML-WV

One kit includes the highest quality PTFE elbow with vent (Qty 1) 500 mL PFA vials (qty 2) PFA closures (Qty 2) and laser marking.


Stand for Elbows - 3 X 500 mL

Part No.: ELBOW-STAND-3x500mL

Three position stand to hold 500mL vessels in any stage of the process.


Cleaning Kit - 25 mL

Part No.: EV-CleaningKit-25mL

The Cleaning Kit allows you to clean and decontaminate the vessel(s) used with your EvapoClean. Kit includes Three CleanClever No. 7 sleeves and three PFA 30mL vials.


Cleaning Kit - 125 mL

Part No.: EV-CleaningKit-125mL

The Cleaning Kit allows you to clean and decontaminate the vessel(s) used with your EvapoClean. Kit includes Three CleanClever No. 6 sleeves and three PFA 90mL jars.


Cleaning Kit - 500 mL

Part No.: EV-CleaningKit-500mL

The Cleaning Kit allows you to clean and decontaminate the vessel(s) used with your EvapoClean. Kit includes Three CleanClever No. 25 sleeves and three PFA 90mL jars.
