Analab EasyTrace & EasyTrace CleanRinseDry

Acid Vapor Labware Cleaning Systems

EasyTrace Systems provide high purity vessel cleaning without requiring ultrapure acids. They safely operate unattended with low operating costs and help produce low repeatable blank levels.

Better Sample Preparation = Better Results

  • Take the guesswork and manual steps out of your labware cleaning process for trace metal analysis with the automated EasyTrace systems
  • Analab’s unique vapor distillation process cleans your glass and plastic laboratory vessels safely and efficiently with small volumes of acid in a closed system
  • EasyTrace delivers significant costs savings by distilling reagent-grade acids and automating a typically labor-intensive process
  • The EasyTrace system automates the acid cleaning phase, while the addition of the CleanRinseDry (CRD) capability fully completes the vessel cleaning process with the automated rinsing and drying of your labware
  • No operator contact with corrosive acids with enclosed EasyTrace and EasyTrace CRD systems
Large EasyTrace System
Large EasyTrace System

EasyTrace Models

EasyTrace provides automated acid vapor cleaning of laboratory vessels

  • Operates with remotely located Analab regulator (110 V and 208-240 V models)
  • Utilizes small volumes of acids (300-500 mL) such as HNO3, HCL, HF
  • Cleaning acid can be manually exchanged with water to provide steam rinsing
  • Available in two system heights (L and XL) to accommodate different vessel sizes and capacities

EasyTrace with CleanRinseDry (CRD) fully automates the Cleaning, Rinsing and Drying steps

  • Supports a dual acid capability to allow automated acid vapor cleaning with two different acids
  • Provides a steam rinse cycle with heated water
  • Completes the process with a heated drying cycle
Large EasyTrace System
Large EasyTrace System
Large EasyTrace with CRD Model
Large EasyTrace with CRD Model

Models

How It Works

  • Closed-environment fluoropolymer EasyTrace enclosure for laboratory vessels equipped with a heated zone on the bottom of the unit
  • Small quantity of reagent grade acid (or water) is heated to create high-purity vapor that rises up into vessels
  • Vapors cool and condense on vessel walls, dissolving contaminants on the surfaces and pores of the vessel walls
  • Condensed droplets containing impurities drain down the vessel walls and return to the heating tray base
  • All contaminants stay in the base of the system; only clean acid vapors or steam reaches the vessels
  • In base EasyTrace system exchanges of acid and water from the base is performed manually when needed
  • EasyTrace with CleanRinseDry (CRD) provides automated switching between acids, water, and a final drying step to fully automate the vessel cleaning process
How It Works

EasyTrace Accessories

A variety of accessories are available to support vessels, caps and pipet tips inside the EasyTrace and EasyTrace CRD systems.

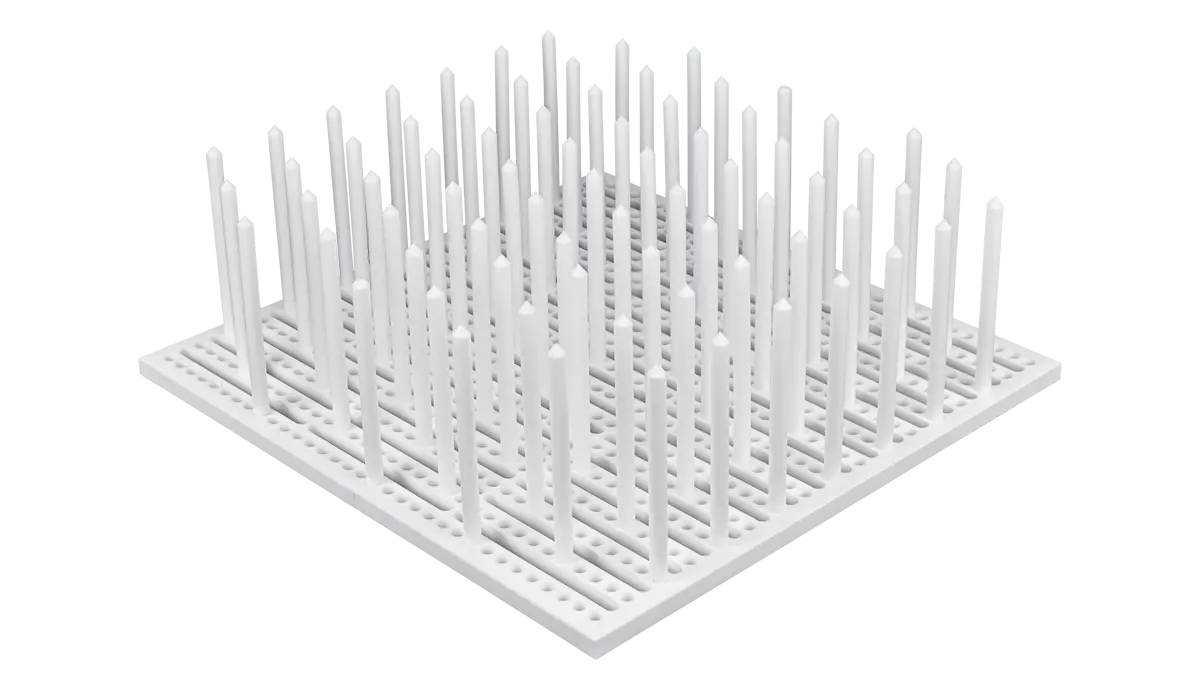

All Systems Equipped with Tray and Removable Rods
All Systems Equipped with Tray & Removable Rods
EasyTrace Tray with Small Vessel Holder
EasyTrace Tray with Small Vessel Holder
EasyTrace Tray with Middle Plate and Rods
EasyTrace Tray with Middle Plate & Rods
EasyTrace Tray with Small Vessel Holder and Middle Plate
EasyTrace Tray with Small Vessel Holder & Middle Plate
P’Tips Racks for Cleaning Various Pipette Tip Sizes
P’Tips Racks for Cleaning Various Pipette Tip Sizes


EasyTrace

Part No.: ET-Series

EasyTrace for future use of the Clean Rinse Dry (CRD) System.

Available options:

  • Lg – 110V/15A (#ET-L-1V)
  • XL – 110V/15A (#ET-XL-1V)
  • Lg – 208-240V/20A (#ET-L-2V)
  • XL – 208-240V/20A (#ET-XL-2V)

EasyTrace with Clean Rinse Dry (CRD) System

Part No.: ET-CRD-Series

EasyTrace with Clean Rinse Dry System (CRD) is completely self-contained so the operator is not in contact with the reagent.

Available options:

  • Lg – 110V/15A (#ET-L-CRD-1V)
  • XL – 110V/15A (#ET-XL-CRD-1V)
  • Lg – 208-240V/20A (#ET-XL-CRD-1V)
  • XL – 208-240V/20A (#ET-XL-CRD-2V)

Middle Plate

Part No.: ETX-MP-Series

The interior of the EasyTrace already is supplied with one PTFE base plate and a handling rod. By adding additional plate(s), the unit can potentially double your cleaning capacity.

Available options:

  • PTFE middle plate for large unit (#ETX-MP-L)
  • PTFE middle plate for XL unit (#ETX-MP-XL)

Additonal Tray, Stabalizing Rods, & Handling Rod Set

Part No.: ETX-BASE-48R-Series

Adding an additional PTFE base plate, handling rod, and convenient 120mm tall rods (qty 48) allow you to prepare a second set of vessels to be washed in advance.

Available options:

  • Middle plate, handle, 48 rods (lg) (#ETX-BASE-48R-L)
  • Middle plate, handle, 48 rods (xl) (#ETX-BASE-48R-XL)

Stabilizing Rods

Part No.: ETX-48R-Series

Convenient rods (qty 48) in PTFE allow you to stabilize your vessels on the plate.

Available options:

  • Additional rods – 120 mm height (#ETX-48R-120)
  • Additional rods – 160 mm height (#ETX-48R-160)
  • Additional rods – 210 mm height (#ETX-48R-210)

Pipette Tips Rack

Part No.: ETX-PR-Series

Pipette tips racks allows you to easily and efficiently clean multiple sizes inside the EasyTrace unit.

Available options:

  • Pipette tips rack to hold 200 uL (#ETX-PR-200)
  • Pipette tips rack to hold 1000 uL (#ETX-PR-1000)
  • Pipette tips rack to hold 5000 uL (#ETX-PR-5000)
  • Pipette tips rack to hold 10000 uL (#ETX-PR-10000)

Outer Diameter Vessel Holder

Part No.: ETX-OD

Small OD vessel holder can be used to stabilize your vessel(s) instead of the rods, quantity 1. Universal fit for L and XL units.
