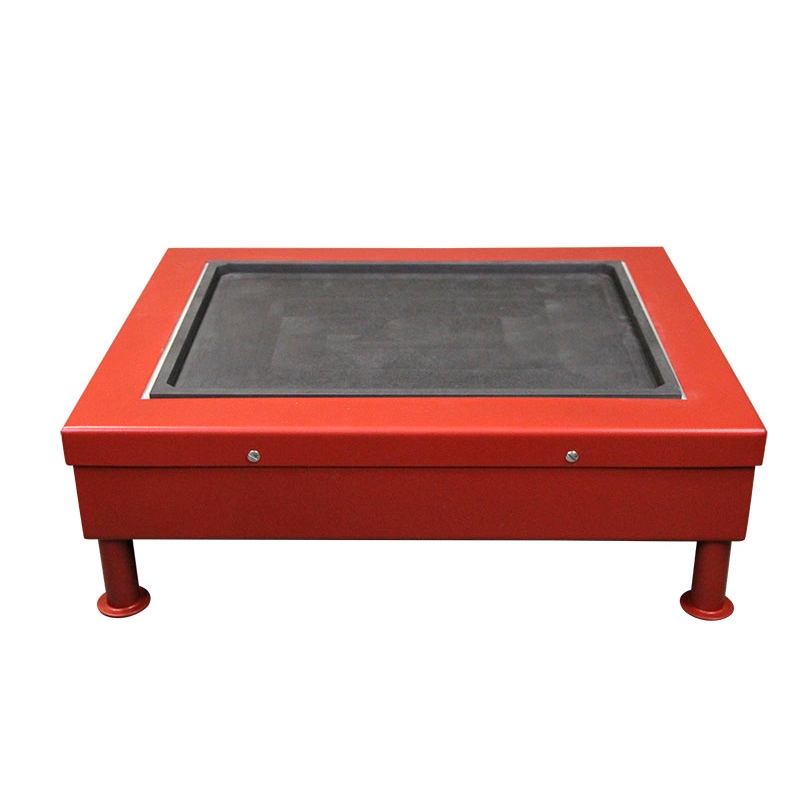

High Temperature Hotplates 350° C

Part No.: PL-350

Analab has developed a hotplate that can reach 350°C by offering a graphite body without a coating. The frame surround this plate is PFA coated stainless steel and inert to acids and constitutes a thermal insulation for protecting the surface of the bench. A 230V regulator is required to reach this temperature (regulator sold separately).

  • A4 (#PL-A4-2V-350)  Dimensions of the graphite work area: 320 x 220 x 50 mm. Overall dimensions: 410 x 310 x H160 mm (total height)
  • A3 (#PL-A3-2V-350) Dimensions of the graphite work area: 420 x 320 x 50 mm. Overall dimensions: 530 x 430 x H170 mm (total height)
  • A2 (#PL-A2-2V-350) Dimensions of the graphite work area: 620 x 420 x 50 mm. Overall dimensions: 720 x 520 x H170 mm (total height)
