PFA MicroFlow Application Nebulizers

Ideal for Applications with HF

PFA MicroFLow nebulizers from ESI are chemically inert and can produce a fine aerosol from aggressive acids, alkalis, organics, and high-salt solutions.

  • All PFA construction
  • Chemically resistant - ideal for strong acids, alkalis, organics
  • Low, spike free background for important elements such as Fe and Ca
  • Produces a fine aerosol for high transport efficiency and high sensitivity
  • Direct analysis of volatile and non-volatile organic solvents
PFA MicroFLow nebulizers from ESI



Nebulizers for FAST & prepFAST

Featuring an integrated capillary for minimal dead volume & faster transfer, they are resistant to clogging & produce high sensitivity at a low sample flowrate. They are the ideal nebulizer for FAST & prepFAST systems & include the correct color-coded connection line with threaded connector.

PFA Self-Aspiration Nebulizers

The self-aspirating PFA MicroFlow nebulizers feature an integrated capillary for self aspiration, ideal for low flow, high-purity applications. Available with a manual sampling probe or with an integrated autosampler probe for ESI SC-series autosamplers.

PFA Apex Nebulizers

Special high-temperature versions of the PFA MicroFlow nebulizers are an ideal complement to ESI's apex family of desolvating nebulizers systems for applications where high transport effeciency and effective removal of aqueous matrix are required.


PFA ST3 Nebulizer

ST3 MicroFlow OneTouch PFA nebulizer with OneTouch gas connector, ¼-28 threaded liquid connector and barbed fitting for peristaltic pump tubing. High performance, clog resistant and chemically inert nebulizer for ICP & ICPMS instruments.

PFA-ST Nebulizer for prepFAST

PFA-ST self-aspirating nebulizer for prepFAST, with external 1/4-28 threaded connector. Includes gas connectors for requested systems [45 psi @ 1 L/min].

PFA-ST Nebulizer

MicroFlow PFA-ST self-aspirating nebulizer with 1/4-28 threaded connector. High performance, chemically resistant nebulizer for ICP and ICPMS. Includes gas fitting and two capillaries (100µl/min. & 400µl/min.)

PFA-ST High Solids Nebulizer

PFA MicroFlow High Solids Large bore Fluoropolymer nebulizer, includes one 400µl/min capillary and 700µl/min capillary.

MicroFlow PFA-ST Self-aspirating Nebulizer with External 1/4-28 Threaded Connector

Part No.: ES-2040-NF-NC

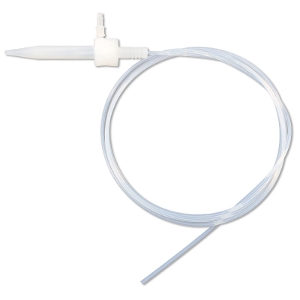

PFA-20 PFA Nebulizer without Probe

Part No.: ES-2020

PFA-20 PFA Nebulizer with Integrated Carbon Fiber Probe

PFA-20 PFA Nebulizer with Integrated Fluoropolymer Capillary 20 µL/min (various caoillary lengths) with carbon fiber reinforcement for ESI DX Autosamplers.

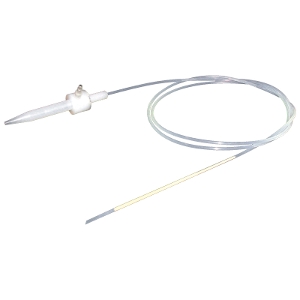

PFA-20 PFA MicroFlow OneTouch Nebulizer with Integrated Ultem Probe

PFA-20 PFA Nebulizer with Integrated Ultem probe 20 µL/min (various capillary lengths) and Ultem reinforcement for ESI DX Autosamplers.

PFA-50 PFA Nebulizer without Probe

Part No.: ES-2000

PFA-50 PFA Nebulizer with Integrated Carbon Fiber Probe

PFA Nebulizer with Integrated Carbon Fiber autosampler probe 50 µL/min (various capillary lengths) for ESI DX Autosamplers.

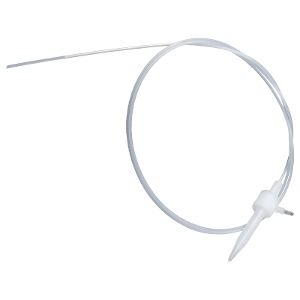

PFA-50 PFA Nebulizer with Integrated PEEK Probe

PFA-50 PFA Nebulizer with Integrated PEEK autosampler probe 50 µL/min (various capillary lengths) for ESI DX Autosamplers.

PFA-50 PFA MicroFlow OneTouch Nebulizer with Integrated Ultem Probe

PFA-50 PFA Nebulizer with Integrated Ultem probe 50 µL/min (various capillary lengths) and Ultem reinforcement for ESI DX Autosamplers.

PFA-100 PFA Nebulizer without Probe

Part No.: ES-2002

PFA-100 PFA Nebulizer with Integrated Carbon Fiber Probe

PFA-100 PFA Nebulizer with Integrated Fluoropolymer Capillary 100 µL/min (various caoillary lengths) with carbon fiber reinforcement for ESI DX Autosamplers.

PFA-100 PFA MicroFlow OneTouch Nebulizer with Integrated Ultem Probe

PFA-100 PFA Nebulizer with Integrated Ultem probe 100 µL/min (various capillary lengths) and Ultem reinforcement for ESI DX Autosamplers.

PFA-200 PFA Nebulizer without Probe

Part No.: ES-2003

PFA-200 PFA Nebulizer with Integrated Carbon Fiber Probe

PFA-200 PFA Nebulizer with Integrated Fluoropolymer Capillary 200 µL/min (various caoillary lengths) with carbon fiber reinforcement for ESI DX Autosamplers.

PFA-200 PFA MicroFlow OneTouch Nebulizer with Integrated Ultem Probe

PFA-200 PFA Nebulizer with Integrated Ultem autosampler probe 200 µL/min (various capillary lengths) and Ultem reinforcement for ESI DX Autosamplers.

PFA-400 PFA Nebulizer without Probe

Part No.: ES-2005

PFA-400 PFA Nebulizer with Integrated Carbon Fiber Probe

PFA-400 PFA Nebulizer with Integrated Fluoropolymer Capillary 400 µL/min (various caoillary lengths) with carbon fiber reinforcement for ESI DX Autosamplers.

PFA-400 PFA Nebulizer with Integrated Ultem Probe

Part No.: ES-2005-3505-100

PFA MicroFlow Nebulizers with Integrated Autosampler Probe - NexION 1000/2000 ICPMS

PFA Nebulizers with Integrated Self-Aspirating Autosampler Probes for the NexION 1000/2000 ICPMS, available in various self-aspiration rates, 80cm or 100cm lenths and with carbon fiber or ultem support.

Apex-ST PFA High Temperature Nebulizer

High temperature apex PFA-ST MicroFlow nebulizer with external 1/4-28 threaded connector and gas line for ICP & ICPMS instruments.

Apex-50 PFA Nebulizer with Integrated Carbon Fiber Probe

PFA-50 PFA Nebulizer with Integrated Fluoropolymer Capillary 50 µL/min (various caoillary lengths) with carbon fiber reinforcement for ESI DX Autosamplers.

PolyPro ST Nebulizer

Poly-Pro Nebulizer with additional gas lines and capillaries included based on instrument.
