Analab FluoroPlate

Your Ideal Tool for Sample Heating and Evaporation

FluoroPlates deliver optimal and uniform heating for all your sampler preparation needs. Their rugged and inert design assures years of reliable operation in corrosive conditions, and are highly customizable with optional EasyDigest Racks.

Better Sample Preparation = Better Results

Sample preparation is a critical step in obtaining accurate results. ANALAB FluoroPlates are available in a range of sizes and with optional EasyDigest racks for maximum flexibility to meet your needs.

PFA-coated specialty graphite work surface for maximum resistance to aggressive chemicals
Uniform temperature across all sample positions (+/- 2 ºC)
Suitable for Class 1 (ISO 3) clean room environments - no contaminants/particulates

Ideal for:

Metallurgy
Semiconductor
Nuclear
Earth Sciences
Environmental
Pharmaceutical

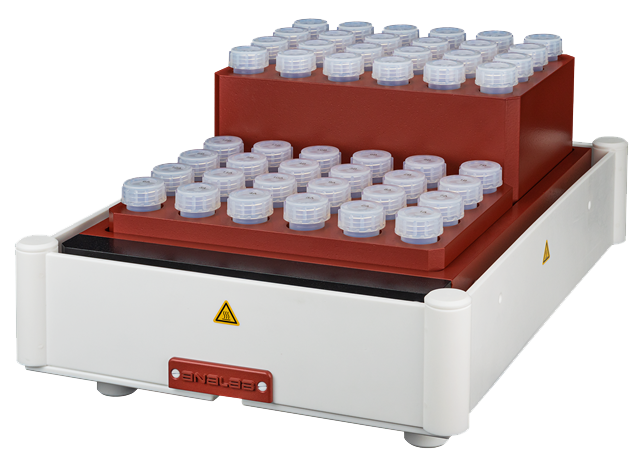

A3 FluoroPlate with EasyDigest Racks

Jump To Products

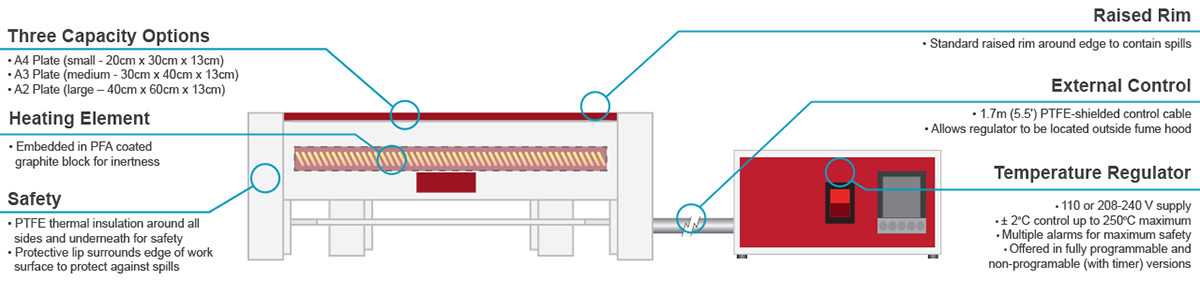

FluoroPlate Features Diagram

FluoroPlate Models

FluoroPlates are available in a range of sizes and operating voltages to suit your requirements.

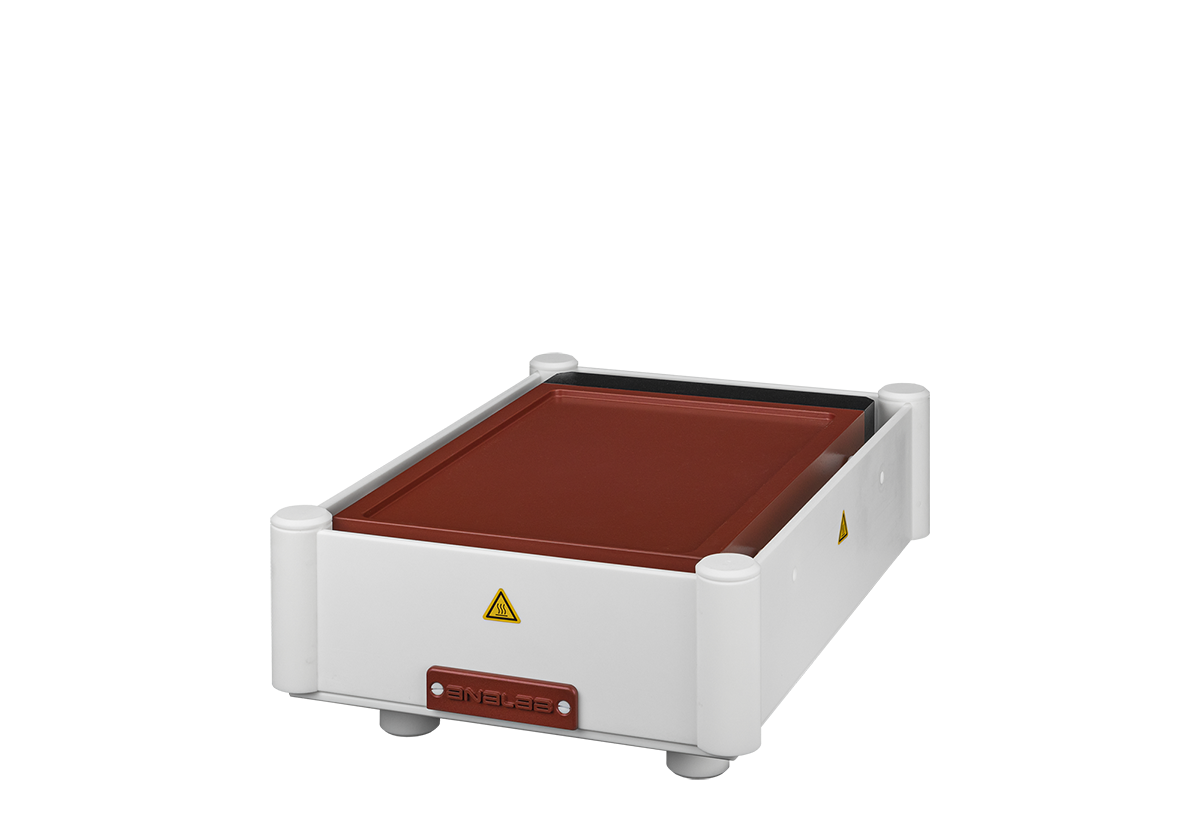

A4 FluoroPlate
(20 x 30 cm)

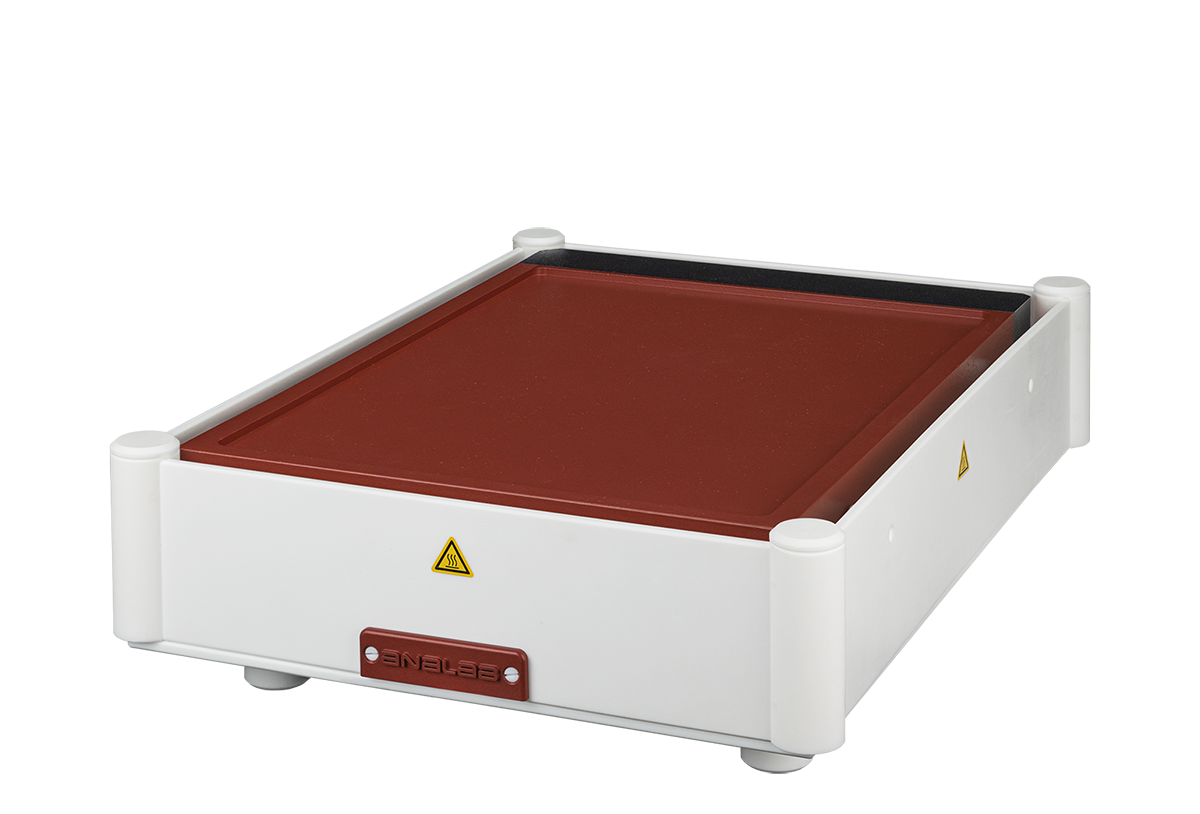

A3 FluoroPlate
(30 x 40 cm)

A2 FluoroPlate
(40 x 60 cm)

EasyDigest Racks

These PFA-coated graphite racks are designed for excellent chemical resistance and add capability to your FluoroPlate:

Provide uniform heating to the vessel bottom and walls for better digestion
Reduces potential for sample loss
Customizable support for almost all sample digestion vessels
Modular compatibility with all FluoroPlate sizes

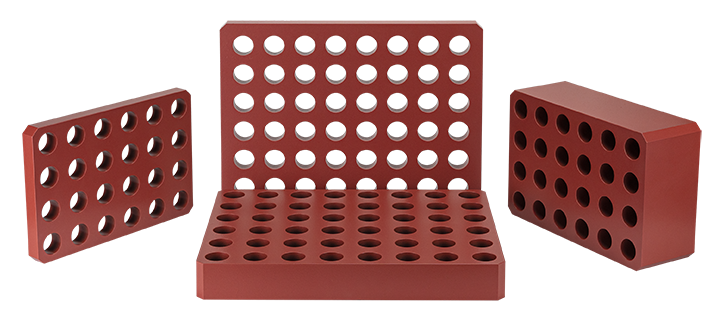

A3 & A4 EasyDigest Racks

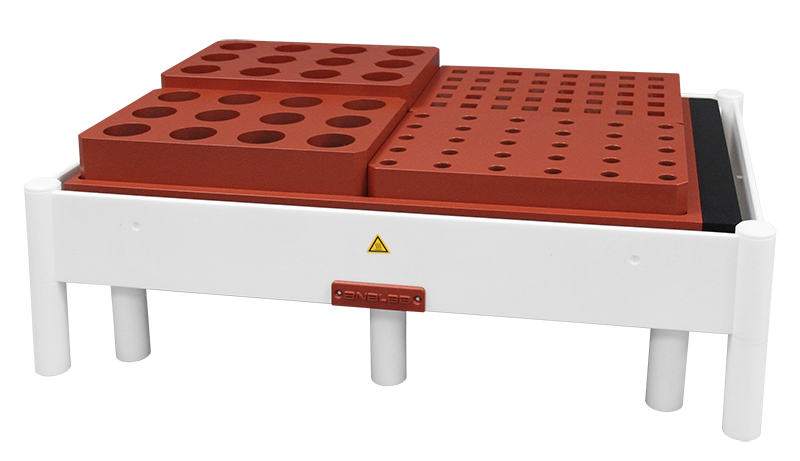

EasyDigest Racks on A2 FluoroPlate

Modular EasyDigest Rack Configurations

Temperature Controlled Regulators

All Analab devices require an external temperature regulator/controller
Designed for remote location outside the corrosive atmosphere of the fume hood for extended operational lifetime
Available in 110–120 V & 208-240 V models
Single controller models available in:
- Single-setpoint Nonprogrammable Regulator with Timer
- Multistep Programmable Regulator
Dual controllers available with temperature feedback/control from remote probe

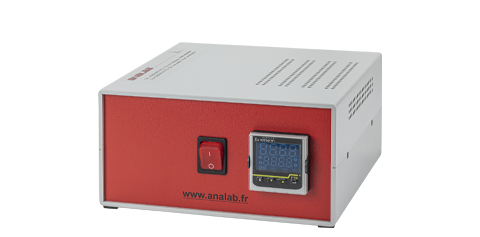

Nonprogrammable Regulator with Timer

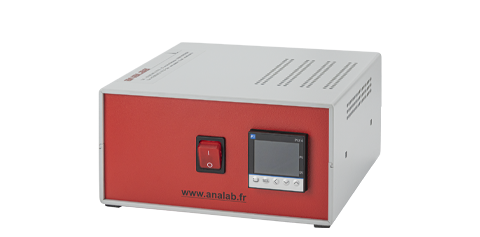

Programmable Regulator with Timer

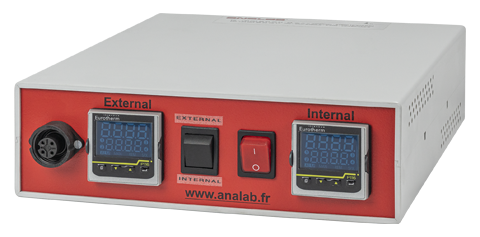

Programmable Dual Controller Regulator

Product Flyers

Analab FluoroPlate Flyer
Analab Regulators Flyer

Catalog

PFA Labware Catalog

A4-Plate FluoroPlate Package

Part No.: A4P-1V

Analab A4 small (32 x 23cm) inert hotplate with rims equipped with PTFE bench and side thermal protection and programmable regulator, reaches 250°C (+/-2°C). North American version, 110V/15A, NEMA 5-15P cable.

A3-Plate FluoroPlate Package

Part No.: A3P-1V

Analab A3 medium size (42 x 33cm) inert hotplate with rims equipped with PTFE bench and side thermal protection with programmable regulator, reaches 200°C (+/-2°C). North American version, 110V/15A, NEMA 5-15P cable.

A2-Plate FluoroPlate Package

Part No.: A2P-2V

Analab A2 large (62 x 42cm) inert hotplate with rims equipped with PTFE bench and side thermal protection with programmable regulator, reaches 240°C (+/-2°C). North American version, 208-240V/20A, NEMA 6-20P cable.

A4-Plate FluoroPlate

Part No.: A4-1V/A4-2V

Analab A4 small (20 x 30cm) inert hotplate equipped with PTFE bench and side thermal protection. Up to 250° C max temperature can be reached, if desired, with the selection of 110V/15A (Part No.: A4-1V ) or 208-240V/15A (Part No.: A4-2V ) regulator (regulator sold separately).

A3-Plate FluoroPlate

Part No.: A3-1V/A3-2V

Analab A3 medium size (30 x 40cm) inert hotplate equipped with PTFE bench and side thermal protection. Up to 200° C max temperature can be reached, if desired, with the selection of 110V/15A (Part No.: A3-1V) regulator (1V) and 250° C (2V) with the 208-240V/15A (Part No.: A3-2V) regulator (regulator sold separately).

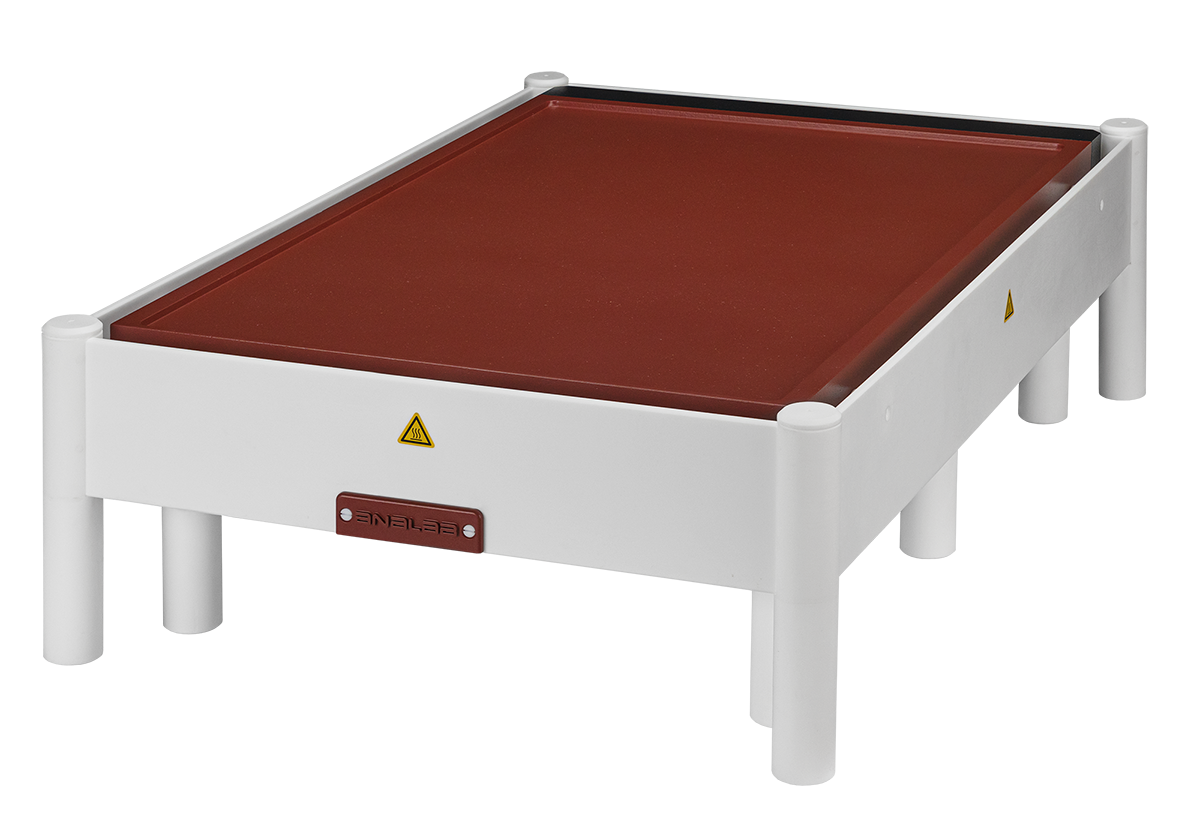

A2-Plate FluoroPlate

Part No.: A2-1V/A2-2V

The Analab A2 (40 x 60cm) hotplate is the largest on the market with a max temperature of 240° C with a 208-240V/20A (Part No.: A2-2V) regulator or a max temperature of 165° C with the 110V/20A (Part No.: A2-1V) regulator (regulator sold separately).

High Temperature Hotplates 350° C

Part No.: PL-350

Analab has developed a hotplate that can reach 350°C by offering a graphite body without a coating. 230V regulator is required to reach this temperature (regulator sold separately).

Available options:

A4 (#PL-A4-2V-350): 320 x 220 x 50 mm. Overall: 410 x 310 x H160 mm
A3 (#PL-A3-2V-350): 420 x 320 x 50 mm. Overall: 530 x 430 x H170 mm
A2 (#PL-A2-2V-350): 620 x 420 x 50 mm. Overall: 720 x 520 x H170 mm

EasyDigest Racks for FluoroPlate

Part No.: Module-Racks

Choose one or more racks to accommodate different size vessels for one Fluoroplate.

Click to view available options
